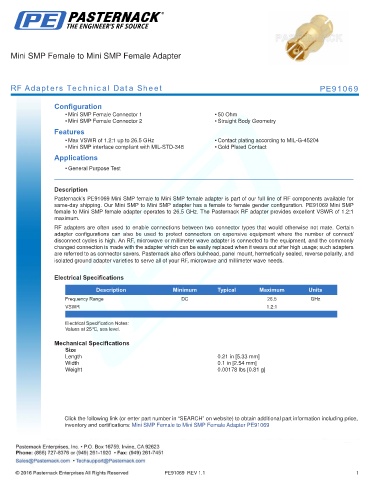

Mini SMP Female to Mini SMP Female Adapter

RF Adapters Technical Data Sheet PE91069

Configuration
• Mini SMP Female Connector 1 • 50 Ohm
• Mini SMP Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.2:1 up to 26.5 GHz • Contact plating according to MIL-G-45204
• Mini SMP interface compliant with MIL-STD-348 • Gold Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE91069 Mini SMP female to Mini SMP female adapter is part of our full line of RF components available for
same-day shipping. Our Mini SMP to Mini SMP adapter has a female to female gender configuration. PE91069 Mini SMP
female to Mini SMP female adapter operates to 26.5 GHz. The Pasternack RF adapter provides excellent VSWR of 1.2:1
maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 26.5 GHz
VSWR 1.2:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.21 in [5.33 mm]
Width 0.1 in [2.54 mm]
Weight 0.00178 lbs [0.81 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Female to Mini SMP Female Adapter PE91069

PE91069 REV 1.1 1
