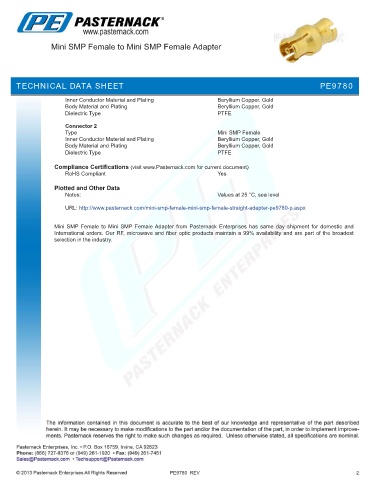

Mini SMP Female to Mini SMP Female Adapter

TECHNICAL DATA SHEET PE9780

Inner Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Beryllium Copper, Gold
Dielectric Type PTFE
Connector 2
Type Mini SMP Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Beryllium Copper, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

URL: http://www.pasternack.com/mini-smp-female-mini-smp-female-straight-adapter-pe9780-p.aspx

Mini SMP Female to Mini SMP Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.

PE9780 REV 2
