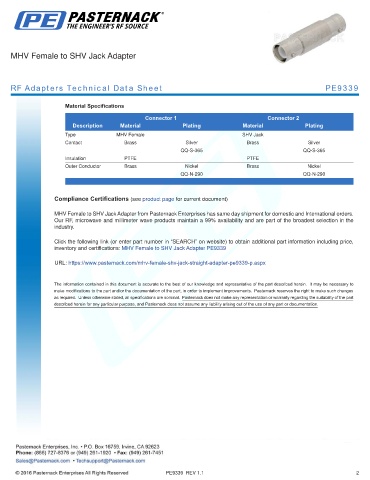

MHV Female to SHV Jack Adapter

RF Adapters Technical Data Sheet PE9339

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type MHV Female SHV Jack
Contact Brass Silver Brass Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Compliance Certifications (see product page for current document)

MHV Female to SHV Jack Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female to SHV Jack Adapter PE9339

URL: https://www.pasternack.com/mhv-female-shv-jack-straight-adapter-pe9339-p.aspx

PE9339 REV 1.1 2
