Mini SMP Female to Mini SMP Female Adapter

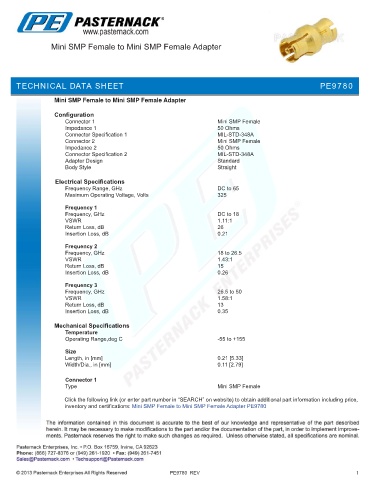

TECHNICAL DATA SHEET PE9780

Mini SMP Female to Mini SMP Female Adapter

Configuration
Connector 1 Mini SMP Female
Impedance 1 50 Ohms
Connector Specification 1 MIL-STD-348A
Connector 2 Mini SMP Female
Impedance 2 50 Ohms
Connector Specification 2 MIL-STD-348A
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range, GHz DC to 65
Maximum Operating Voltage, Volts 325
Frequency 1
Frequency, GHz DC to 18
VSWR 1.11:1
Return Loss, dB 26
Insertion Loss, dB 0.21
Frequency 2
Frequency, GHz 18 to 26.5
VSWR 1.43:1
Return Loss, dB 15
Insertion Loss, dB 0.26
Frequency 3
Frequency, GHz 26.5 to 50
VSWR 1.58:1
Return Loss, dB 13
Insertion Loss, dB 0.35
Mechanical Specifications
Temperature
Operating Range,deg C -55 to +155

Size
Length, in [mm] 0.21 [5.33]
Width/Dia., in [mm] 0.11 [2.79]
.
Connector 1
Type Mini SMP Female

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Female to Mini SMP Female Adapter PE9780

PE9780 REV 1
