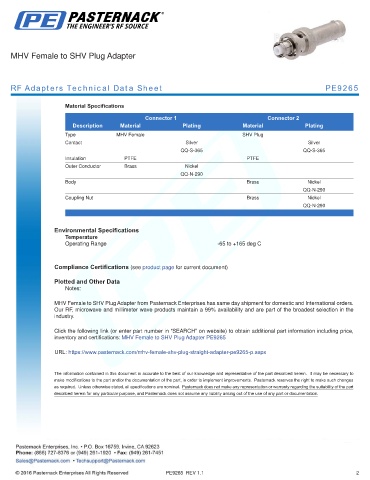

MHV Female to SHV Plug Adapter

RF Adapters Technical Data Sheet PE9265

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type MHV Female SHV Plug
Contact Silver Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

MHV Female to SHV Plug Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female to SHV Plug Adapter PE9265

URL: https://www.pasternack.com/mhv-female-shv-plug-straight-adapter-pe9265-p.aspx

PE9265 REV 1.1 2
