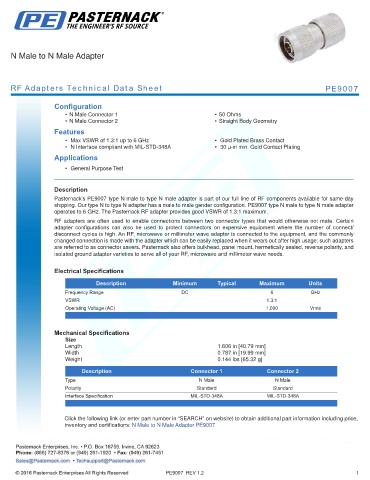

N Male to N Male Adapter

RF Adapters Technical Data Sheet PE9007

Configuration
• N Male Connector 1 • 50 Ohms
• N Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 6 GHz • Gold Plated Brass Contact
• N Interface compliant with MIL-STD-348A • 30 µ-in min. Gold Contact Plating
Applications
• General Purpose Test
.
Description
Pasternack’s PE9007 type N male to type N male adapter is part of our full line of RF components available for same-day
shipping. Our type N to type N adapter has a male to male gender configuration. PE9007 type N male to type N male adapter
operates to 6 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.3:1
Operating Voltage (AC) 1,000 Vrms
. .

Mechanical Specifications
Size
Length 1.606 in [40.79 mm]
Width 0.787 in [19.99 mm]
Weight 0.144 lbs [65.32 g]
.
Description Connector 1 Connector 2
Type N Male N Male
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to N Male Adapter PE9007

PE9007 REV 1.2 1
