N Male to SC Female Adapter

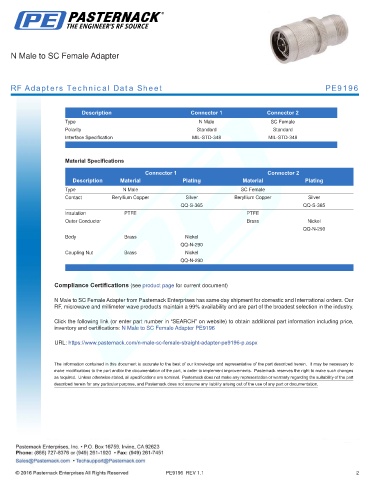

RF Adapters Technical Data Sheet PE9196

.
Description Connector 1 Connector 2
Type N Male SC Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male SC Female
Contact Beryllium Copper Silver Beryllium Copper Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Compliance Certifications (see product page for current document)

N Male to SC Female Adapter from Pasternack Enterprises has same day shipment for domestic and International orders. Our
RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to SC Female Adapter PE9196

URL: https://www.pasternack.com/n-male-sc-female-straight-adapter-pe9196-p.aspx

PE9196 REV 1.1 2
