N Male to SC Male Adapter

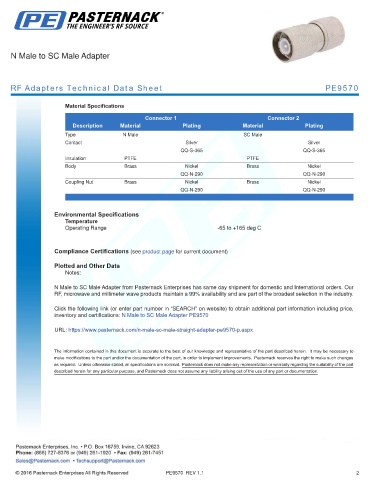

RF Adapters Technical Data Sheet PE9570

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male SC Male
Contact Silver Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
Coupling Nut Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
N Male to SC Male Adapter from Pasternack Enterprises has same day shipment for domestic and International orders. Our
RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to SC Male Adapter PE9570

URL: https://www.pasternack.com/n-male-sc-male-straight-adapter-pe9570-p.aspx

PE9570 REV 1.1 2
