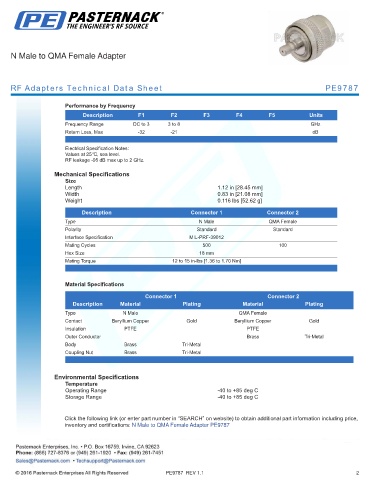

N Male to QMA Female Adapter

RF Adapters Technical Data Sheet PE9787

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 3 to 8 GHz
Return Loss, Max -32 -21 dB
.
Electrical Specification Notes:
Values at 25°C, sea level.
RF leakage -95 dB max up to 2 GHz.

Mechanical Specifications
Size
Length 1.12 in [28.45 mm]
Width 0.83 in [21.08 mm]
Weight 0.116 lbs [52.62 g]
.
Description Connector 1 Connector 2
Type N Male QMA Female
Polarity Standard Standard
Interface Specification MIL-PRF-39012
Mating Cycles 500 100
Hex Size 18 mm
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male QMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Insulation PTFE PTFE
Outer Conductor Brass Tri-Metal
Body Brass Tri-Metal
Coupling Nut Brass Tri-Metal
. .

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C
Storage Range -40 to +85 deg C
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to QMA Female Adapter PE9787
