N Male to QMA Female Adapter

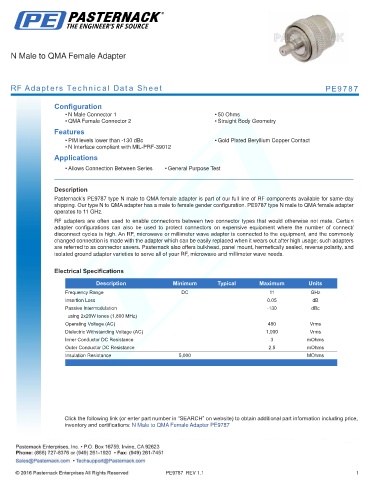

RF Adapters Technical Data Sheet PE9787

Configuration
• N Male Connector 1 • 50 Ohms
• QMA Female Connector 2 • Straight Body Geometry
Features
• PIM levels lower than -130 dBc • Gold Plated Beryllium Copper Contact
• N Interface compliant with MIL-PRF-39012
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9787 type N male to QMA female adapter is part of our full line of RF components available for same-day
shipping. Our type N to QMA adapter has a male to female gender configuration. PE9787 type N male to QMA female adapter
operates to 11 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Insertion Loss 0.05 dB
Passive Intermodulation -130 dBc
using 2x20W tones (1,800 MHz)
Operating Voltage (AC) 480 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
Inner Conductor DC Resistance 3 mOhms
Outer Conductor DC Resistance 2.5 mOhms
Insulation Resistance 5,000 MOhms
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to QMA Female Adapter PE9787

PE9787 REV 1.1 1
