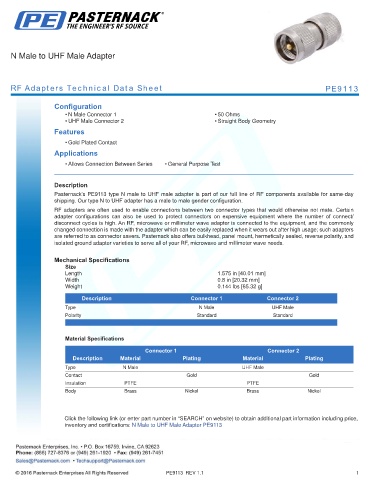

N Male to UHF Male Adapter

RF Adapters Technical Data Sheet PE9113

Configuration
• N Male Connector 1 • 50 Ohms
• UHF Male Connector 2 • Straight Body Geometry
Features

• Gold Plated Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9113 type N male to UHF male adapter is part of our full line of RF components available for same-day
shipping. Our type N to UHF adapter has a male to male gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.575 in [40.01 mm]
Width 0.8 in [20.32 mm]
Weight 0.144 lbs [65.32 g]
.
Description Connector 1 Connector 2
Type N Male UHF Male
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male UHF Male
Contact Gold Gold
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to UHF Male Adapter PE9113

PE9113 REV 1.1 1
