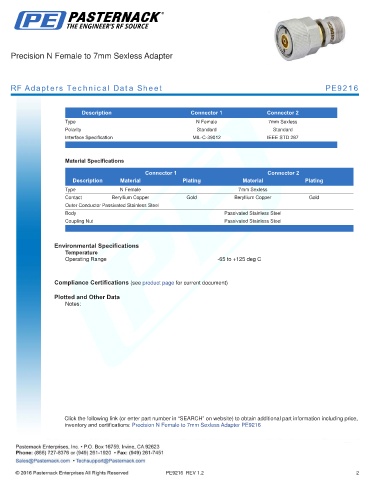

Precision N Female to 7mm Sexless Adapter

RF Adapters Technical Data Sheet PE9216

.
Description Connector 1 Connector 2
Type N Female 7mm Sexless
Polarity Standard Standard
Interface Specification MIL-C-39012 IEEE STD 287
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female 7mm Sexless
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision N Female to 7mm Sexless Adapter PE9216

PE9216 REV 1.2 2
