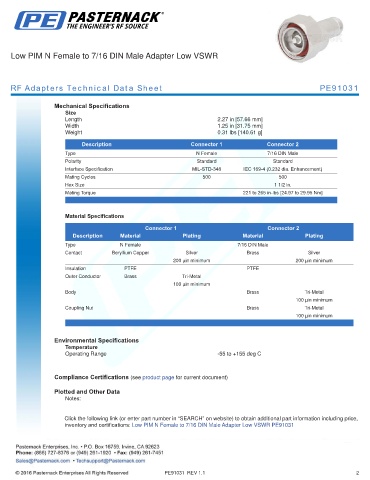

Low PIM N Female to 7/16 DIN Male Adapter Low VSWR

RF Adapters Technical Data Sheet PE91031

Mechanical Specifications
Size
Length 2.27 in [57.66 mm]
Width 1.25 in [31.75 mm]
Weight 0.31 lbs [140.61 g]
.
Description Connector 1 Connector 2
Type N Female 7/16 DIN Male
Polarity Standard Standard
Interface Specification MIL-STD-348 IEC 169-4 (0.232 dia. Enhancement)
Mating Cycles 500 500
Hex Size 1 1/2 in.
Mating Torque 221 to 265 in-lbs [24.97 to 29.95 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female 7/16 DIN Male
Contact Beryllium Copper Silver Brass Silver
200 µin minimum 200 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Tri-Metal
100 µin minimum
Body Brass Tri-Metal
100 µin minimum
Coupling Nut Brass Tri-Metal
100 µin minimum
. .

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM N Female to 7/16 DIN Male Adapter Low VSWR PE91031

PE91031 REV 1.1 2
