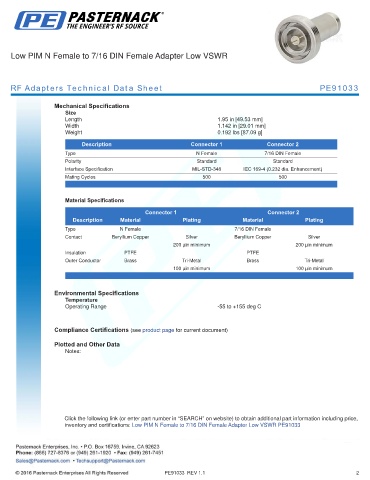

Low PIM N Female to 7/16 DIN Female Adapter Low VSWR

RF Adapters Technical Data Sheet PE91033

Mechanical Specifications
Size
Length 1.95 in [49.53 mm]
Width 1.142 in [29.01 mm]
Weight 0.192 lbs [87.09 g]
.
Description Connector 1 Connector 2
Type N Female 7/16 DIN Female
Polarity Standard Standard
Interface Specification MIL-STD-348 IEC 169-4 (0.232 dia. Enhancement)
Mating Cycles 500 500
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female 7/16 DIN Female
Contact Beryllium Copper Silver Beryllium Copper Silver
200 µin minimum 200 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Tri-Metal Brass Tri-Metal
100 µin minimum 100 µin minimum
. .

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM N Female to 7/16 DIN Female Adapter Low VSWR PE91033

PE91033 REV 1.1 2
