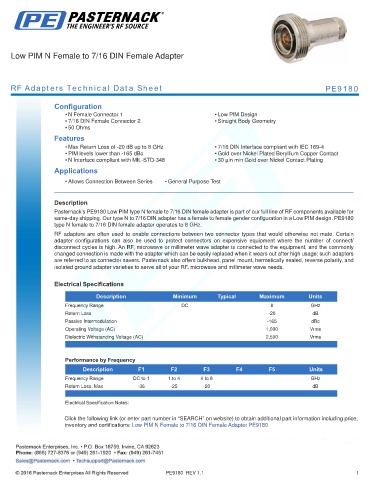

Low PIM N Female to 7/16 DIN Female Adapter

RF Adapters Technical Data Sheet PE9180

Configuration
• N Female Connector 1 • Low PIM Design
• 7/16 DIN Female Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max Return Loss of -20 dB up to 8 GHz • 7/16 DIN Interface compliant with IEC 169-4
• PIM levels lower than -165 dBc • Gold over Nickel Plated Beryllium Copper Contact
• N Interface compliant with MIL-STD-348 • 30 µin min Gold over Nickel Contact Plating
Applications

• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9180 Low PIM type N female to 7/16 DIN female adapter is part of our full line of RF components available for
same-day shipping. Our type N to 7/16 DIN adapter has a female to female gender configuration in a Low PIM design. PE9180
type N female to 7/16 DIN female adapter operates to 8 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 8 GHz
Return Loss -20 dB
Passive Intermodulation -165 dBc
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 1 1 to 4 4 to 8 GHz
Return Loss, Max -36 -25 -20 dB
.
Electrical Specification Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM N Female to 7/16 DIN Female Adapter PE9180

PE9180 REV 1.1 1
