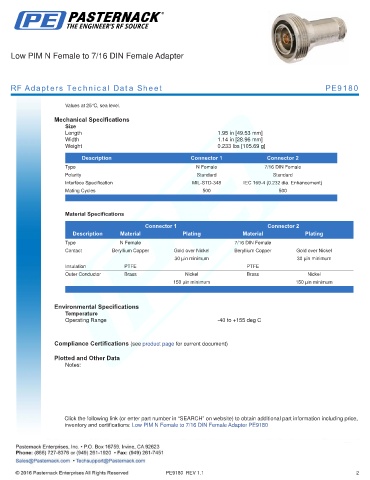

Low PIM N Female to 7/16 DIN Female Adapter

RF Adapters Technical Data Sheet PE9180

Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.95 in [49.53 mm]
Width 1.14 in [28.96 mm]
Weight 0.233 lbs [105.69 g]
.
Description Connector 1 Connector 2
Type N Female 7/16 DIN Female
Polarity Standard Standard
Interface Specification MIL-STD-348 IEC 169-4 (0.232 dia. Enhancement)
Mating Cycles 500 500
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female 7/16 DIN Female
Contact Beryllium Copper Gold over Nickel Beryllium Copper Gold over Nickel
30 µin minimum 30 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
150 µin minimum 150 µin minimum
. .

Environmental Specifications
Temperature
Operating Range -40 to +155 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM N Female to 7/16 DIN Female Adapter PE9180
