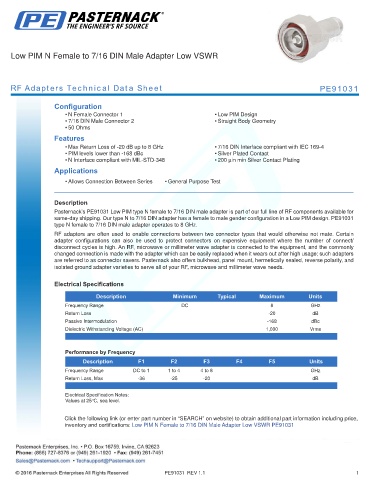

Low PIM N Female to 7/16 DIN Male Adapter Low VSWR

RF Adapters Technical Data Sheet PE91031

Configuration
• N Female Connector 1 • Low PIM Design
• 7/16 DIN Male Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max Return Loss of -20 dB up to 8 GHz • 7/16 DIN Interface compliant with IEC 169-4
• PIM levels lower than -168 dBc • Silver Plated Contact
• N Interface compliant with MIL-STD-348 • 200 µin min Silver Contact Plating
Applications

• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE91031 Low PIM type N female to 7/16 DIN male adapter is part of our full line of RF components available for
same-day shipping. Our type N to 7/16 DIN adapter has a female to male gender configuration in a Low PIM design. PE91031
type N female to 7/16 DIN male adapter operates to 8 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 8 GHz
Return Loss -20 dB
Passive Intermodulation -168 dBc
Dielectric Withstanding Voltage (AC) 1,000 Vrms
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 1 1 to 4 4 to 8 GHz
Return Loss, Max -36 -25 -20 dB
.
Electrical Specification Notes:
Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM N Female to 7/16 DIN Male Adapter Low VSWR PE91031

PE91031 REV 1.1 1
