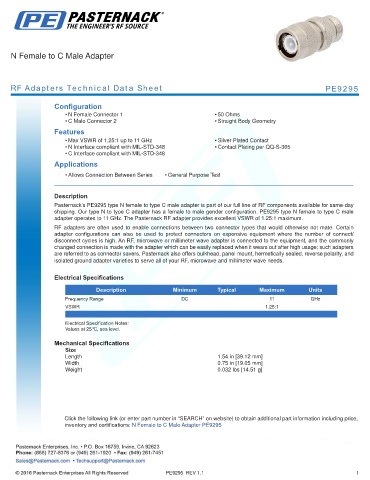

N Female to C Male Adapter

RF Adapters Technical Data Sheet PE9295

Configuration
• N Female Connector 1 • 50 Ohms
• C Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 11 GHz • Silver Plated Contact
• N Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
• C Interface compliant with MIL-STD-348
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE9295 type N female to type C male adapter is part of our full line of RF components available for same-day
shipping. Our type N to type C adapter has a female to male gender configuration. PE9295 type N female to type C male
adapter operates to 11 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.25:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.54 in [39.12 mm]
Width 0.75 in [19.05 mm]
Weight 0.032 lbs [14.51 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to C Male Adapter PE9295

PE9295 REV 1.1 1
