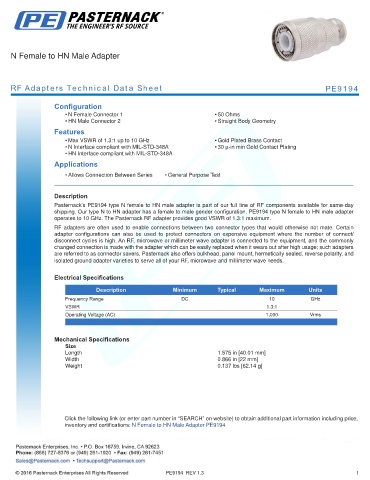

N Female to HN Male Adapter

RF Adapters Technical Data Sheet PE9194

Configuration
• N Female Connector 1 • 50 Ohms
• HN Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 10 GHz • Gold Plated Brass Contact
• N Interface compliant with MIL-STD-348A • 30 µ-in min Gold Contact Plating
• HN Interface compliant with MIL-STD-348A
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE9194 type N female to HN male adapter is part of our full line of RF components available for same-day
shipping. Our type N to HN adapter has a female to male gender configuration. PE9194 type N female to HN male adapter
operates to 10 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 10 GHz
VSWR 1.3:1
Operating Voltage (AC) 1,000 Vrms
. .

Mechanical Specifications
Size
Length 1.575 in [40.01 mm]
Width 0.866 in [22 mm]
Weight 0.137 lbs [62.14 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to HN Male Adapter PE9194

PE9194 REV 1.3 1
