N Female to GR874 Adapter

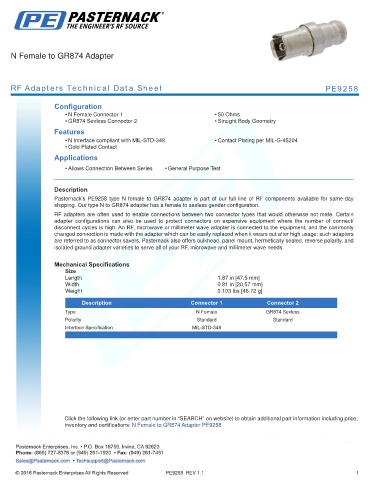

RF Adapters Technical Data Sheet PE9258

Configuration
• N Female Connector 1 • 50 Ohms
• GR874 Sexless Connector 2 • Straight Body Geometry
Features
• N Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• Gold Plated Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9258 type N female to GR874 adapter is part of our full line of RF components available for same-day
shipping. Our type N to GR874 adapter has a female to sexless gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.87 in [47.5 mm]
Width 0.81 in [20.57 mm]
Weight 0.103 lbs [46.72 g]
.
Description Connector 1 Connector 2
Type N Female GR874 Sexless
Polarity Standard Standard
Interface Specification MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to GR874 Adapter PE9258

PE9258 REV 1.1 1
