50 Ohm N Female to 75 Ohm F Male Adapter

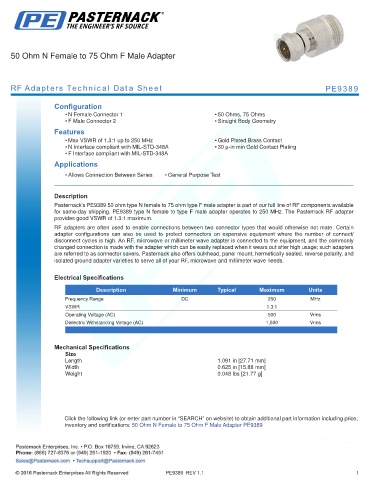

RF Adapters Technical Data Sheet PE9389

Configuration
• N Female Connector 1 • 50 Ohms, 75 Ohms
• F Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 250 MHz • Gold Plated Brass Contact
• N Interface compliant with MIL-STD-348A • 30 µ-in min Gold Contact Plating
• F Interface compliant with MIL-STD-348A
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE9389 50 ohm type N female to 75 ohm type F male adapter is part of our full line of RF components available
for same-day shipping. PE9389 type N female to type F male adapter operates to 250 MHz. The Pasternack RF adapter
provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 250 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
. .

Mechanical Specifications
Size
Length 1.091 in [27.71 mm]
Width 0.625 in [15.88 mm]
Weight 0.048 lbs [21.77 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm N Female to 75 Ohm F Male Adapter PE9389

PE9389 REV 1.1 1
