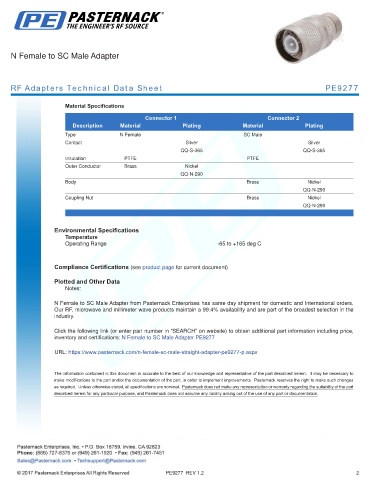

N Female to SC Male Adapter

RF Adapters Technical Data Sheet PE9277

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female SC Male
Contact Silver Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

N Female to SC Male Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99.4% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to SC Male Adapter PE9277

URL: https://www.pasternack.com/n-female-sc-male-straight-adapter-pe9277-p.aspx

PE9277 REV 1.2 2
