N Female to QMA Male Adapter

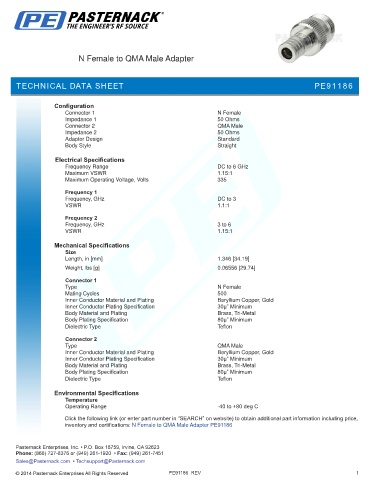

TECHNICAL DATA SHEET PE91186

Configuration
Connector 1 N Female
Impedance 1 50 Ohms
Connector 2 QMA Male
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 6 GHz
Maximum VSWR 1.15:1
Maximum Operating Voltage, Volts 335

Frequency 1
Frequency, GHz DC to 3
VSWR 1.1:1
Frequency 2
Frequency, GHz 3 to 6
VSWR 1.15:1

Mechanical Specifications
Size
Length, in [mm] 1.346 [34.19]
.
Weight, lbs [g] 0.06556 [29.74]
Connector 1
Type N Female
Mating Cycles 500
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification 30µ” Minimum
Body Material and Plating Brass, Tri-Metal
Body Plating Specification 80µ” Minimum
Dielectric Type Teflon
Connector 2
Type QMA Male
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification 30µ” Minimum
Body Material and Plating Brass, Tri-Metal
Body Plating Specification 80µ” Minimum
Dielectric Type Teflon

Environmental Specifications
Temperature
Operating Range -40 to +80 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to QMA Male Adapter PE91186

PE91186 REV 1
