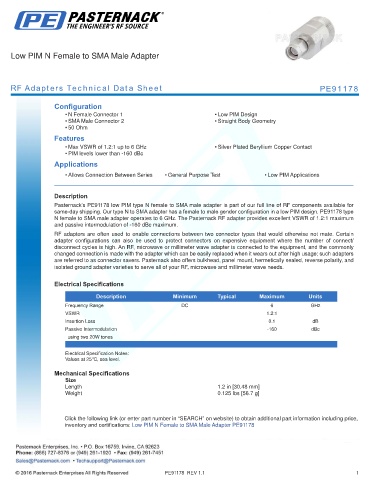

Low PIM N Female to SMA Male Adapter

RF Adapters Technical Data Sheet PE91178

Configuration
• N Female Connector 1 • Low PIM Design
• SMA Male Connector 2 • Straight Body Geometry
• 50 Ohm
Features
• Max VSWR of 1.2:1 up to 6 GHz • Silver Plated Beryllium Copper Contact
• PIM levels lower than -160 dBc
Applications
• Allows Connection Between Series • General Purpose Test • Low PIM Applications

.
Description
Pasternack’s PE91178 low PIM type N female to SMA male adapter is part of our full line of RF components available for
same-day shipping. Our type N to SMA adapter has a female to male gender configuration in a low PIM design. PE91178 type
N female to SMA male adapter operates to 6 GHz. The Pasternack RF adapter provides excellent VSWR of 1.2:1 maximum
and passive intermodulation of -160 dBc maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.2:1
Insertion Loss 0.1 dB
Passive Intermodulation -160 dBc
using two 20W tones
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.2 in [30.48 mm]
Weight 0.125 lbs [56.7 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM N Female to SMA Male Adapter PE91178

PE91178 REV 1.1 1
