N Female to SMB Plug Adapter

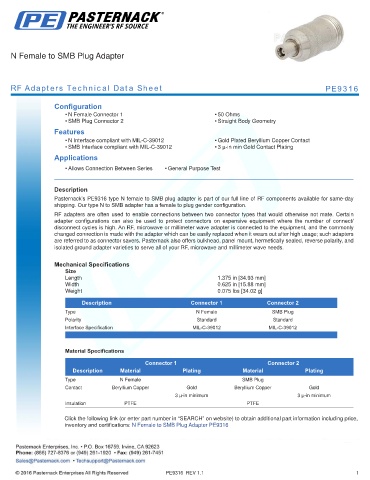

RF Adapters Technical Data Sheet PE9316

Configuration
• N Female Connector 1 • 50 Ohms
• SMB Plug Connector 2 • Straight Body Geometry
Features
• N Interface compliant with MIL-C-39012 • Gold Plated Beryllium Copper Contact
• SMB Interface compliant with MIL-C-39012 • 3 µ-in min Gold Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9316 type N female to SMB plug adapter is part of our full line of RF components available for same-day
shipping. Our type N to SMB adapter has a female to plug gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.375 in [34.93 mm]
Width 0.625 in [15.88 mm]
Weight 0.075 lbs [34.02 g]
.
Description Connector 1 Connector 2
Type N Female SMB Plug
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female SMB Plug
Contact Beryllium Copper Gold Beryllium Copper Gold
3 µ-in minimum 3 µ-in minimum
Insulation PTFE PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to SMB Plug Adapter PE9316
