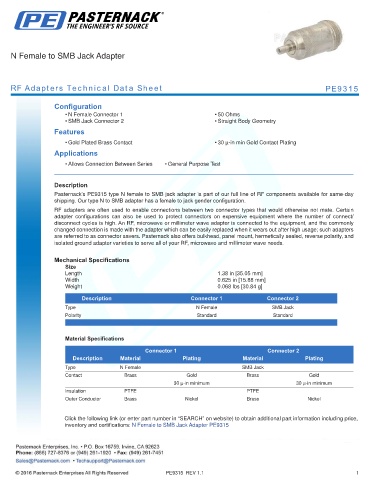

N Female to SMB Jack Adapter

RF Adapters Technical Data Sheet PE9315

Configuration
• N Female Connector 1 • 50 Ohms
• SMB Jack Connector 2 • Straight Body Geometry
Features

• Gold Plated Brass Contact • 30 µ-in min Gold Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9315 type N female to SMB jack adapter is part of our full line of RF components available for same-day
shipping. Our type N to SMB adapter has a female to jack gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.38 in [35.05 mm]
Width 0.625 in [15.88 mm]
Weight 0.068 lbs [30.84 g]
.
Description Connector 1 Connector 2
Type N Female SMB Jack
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female SMB Jack
Contact Brass Gold Brass Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to SMB Jack Adapter PE9315

PE9315 REV 1.1 1
