N Female to SMC Jack Adapter

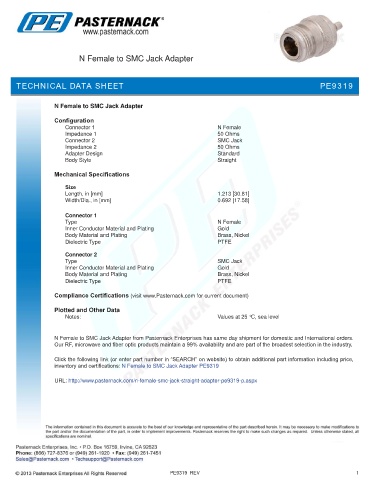

TECHNICAL DATA SHEET PE9319

N Female to SMC Jack Adapter

Configuration
Connector 1 N Female
Impedance 1 50 Ohms
Connector 2 SMC Jack
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.213 [30.81]
Width/Dia., in [mm] 0.692 [17.58]
.
Connector 1
Type N Female
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Connector 2
Type SMC Jack
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

N Female to SMC Jack Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to SMC Jack Adapter PE9319

URL: http://www.pasternack.com/n-female-smc-jack-straight-adapter-pe9319-p.aspx

PE9319 REV 1
