N Female to TNC Male Adapter

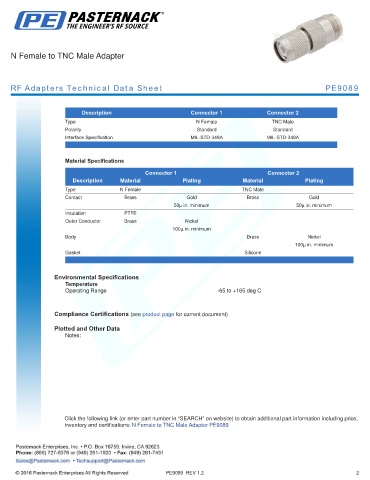

RF Adapters Technical Data Sheet PE9089

.
Description Connector 1 Connector 2
Type N Female TNC Male
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female TNC Male
Contact Brass Gold Brass Gold
50µ in. minimum 50µ in. minimum
Insulation PTFE
Outer Conductor Brass Nickel
100µ in. minimum
Body Brass Nickel
100µ in. minimum
Gasket Silicone
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to TNC Male Adapter PE9089

PE9089 REV 1.2 2
