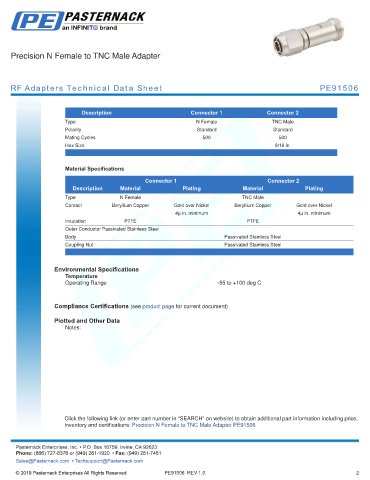

Precision N Female to TNC Male Adapter

RF Adapters Technical Data Sheet PE91506

.
Description Connector 1 Connector 2
Type N Female TNC Male
Polarity Standard Standard
Mating Cycles 500 500
Hex Size 9/16 in.
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female TNC Male
Contact Beryllium Copper Gold over Nickel Beryllium Copper Gold over Nickel
4µ in. minimum 4µ in. minimum
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -55 to +100 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision N Female to TNC Male Adapter PE91506
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91506 REV 1.0 2
