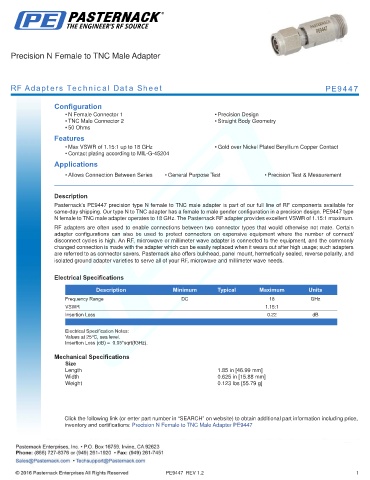

Precision N Female to TNC Male Adapter

RF Adapters Technical Data Sheet PE9447

Configuration
• N Female Connector 1 • Precision Design
• TNC Male Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.15:1 up to 18 GHz • Gold over Nickel Plated Beryllium Copper Contact
• Contact plating according to MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE9447 precision type N female to TNC male adapter is part of our full line of RF components available for
same-day shipping. Our type N to TNC adapter has a female to male gender configuration in a precision design. PE9447 type
N female to TNC male adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.15:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
Insertion Loss 0.22 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss (dB) = 0.05*sqrt(fGHz).

Mechanical Specifications
Size
Length 1.85 in [46.99 mm]
Width 0.625 in [15.88 mm]
Weight 0.123 lbs [55.79 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision N Female to TNC Male Adapter PE9447
