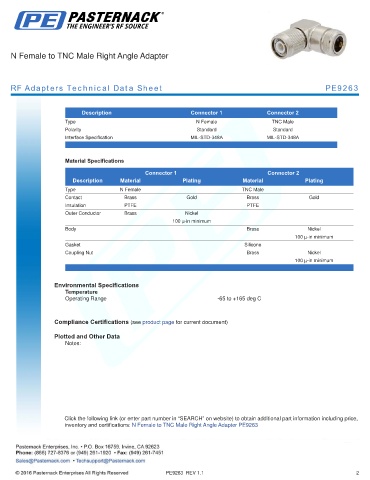

N Female to TNC Male Right Angle Adapter

RF Adapters Technical Data Sheet PE9263

.
Description Connector 1 Connector 2
Type N Female TNC Male
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female TNC Male
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100 µ-in minimum
Body Brass Nickel
100 µ-in minimum
Gasket Silicone
Coupling Nut Brass Nickel
100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to TNC Male Right Angle Adapter PE9263

PE9263 REV 1.1 2
