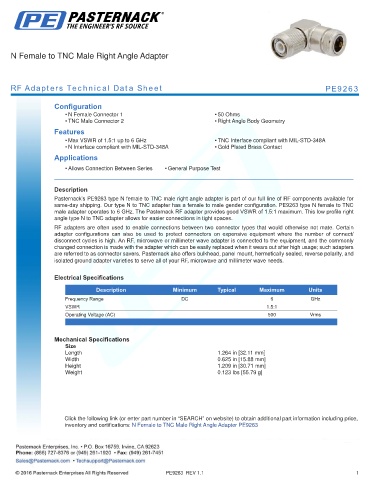

N Female to TNC Male Right Angle Adapter

RF Adapters Technical Data Sheet PE9263

Configuration
• N Female Connector 1 • 50 Ohms
• TNC Male Connector 2 • Right Angle Body Geometry
Features
• Max VSWR of 1.5:1 up to 6 GHz • TNC Interface compliant with MIL-STD-348A
• N Interface compliant with MIL-STD-348A • Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9263 type N female to TNC male right angle adapter is part of our full line of RF components available for
same-day shipping. Our type N to TNC adapter has a female to male gender configuration. PE9263 type N female to TNC
male adapter operates to 6 GHz. The Pasternack RF adapter provides good VSWR of 1.5:1 maximum. This low profile right
angle type N to TNC adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 1.264 in [32.11 mm]
Width 0.625 in [15.88 mm]
Height 1.209 in [30.71 mm]
Weight 0.123 lbs [55.79 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to TNC Male Right Angle Adapter PE9263

PE9263 REV 1.1 1
