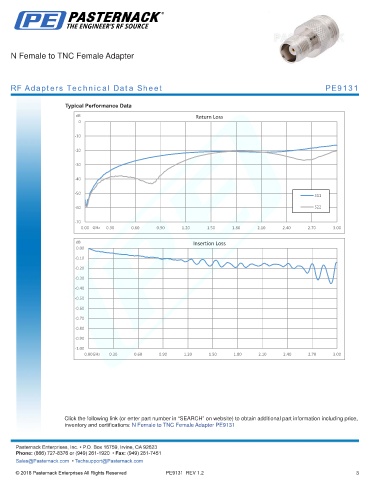

N Female to TNC Female Adapter
RF Adapters Technical Data Sheet PE9131
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
S11
-60 S22
-70
0.00 GHz 0.30 0.60 0.90 1.20 1.50 1.80 2.10 2.40 2.70 3.00
dB Insertion Loss
0.00
-0.10
-0.20
-0.30
-0.40
-0.50
-0.60
-0.70
-0.80
-0.90
-1.00
0.00GHz 0.30 0.60 0.90 1.20 1.50 1.80 2.10 2.40 2.70 3.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to TNC Female Adapter PE9131
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE9131 REV 1.2 3
