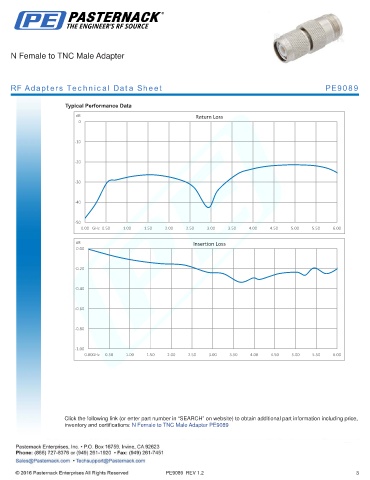

N Female to TNC Male Adapter
RF Adapters Technical Data Sheet PE9089
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
0.00 GHz 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 5.50 6.00
dB Insertion Loss
0.00
-0.20
-0.40
-0.60
-0.80
-1.00
0.00GHz 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 5.50 6.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to TNC Male Adapter PE9089
PE9089 REV 1.2 3
