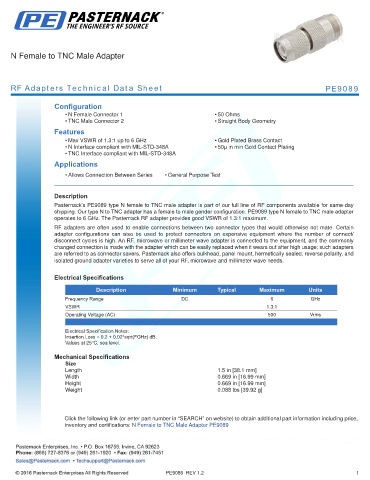

N Female to TNC Male Adapter
RF Adapters Technical Data Sheet PE9089
Configuration
• N Female Connector 1 • 50 Ohms
• TNC Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 6 GHz • Gold Plated Brass Contact
• N Interface compliant with MIL-STD-348A • 50µ in min Gold Contact Plating
• TNC Interface compliant with MIL-STD-348A
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9089 type N female to TNC male adapter is part of our full line of RF components available for same-day
shipping. Our type N to TNC adapter has a female to male gender configuration. PE9089 type N female to TNC male adapter
operates to 6 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
. .
Electrical Specification Notes:
Insertion Loss = 0.2 + 0.02*sqrt(FGHz) dB.
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 1.5 in [38.1 mm]
Width 0.669 in [16.99 mm]
Height 0.669 in [16.99 mm]
Weight 0.088 lbs [39.92 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to TNC Male Adapter PE9089
PE9089 REV 1.2 1
