SC Tee Adapter Female-Male-Female

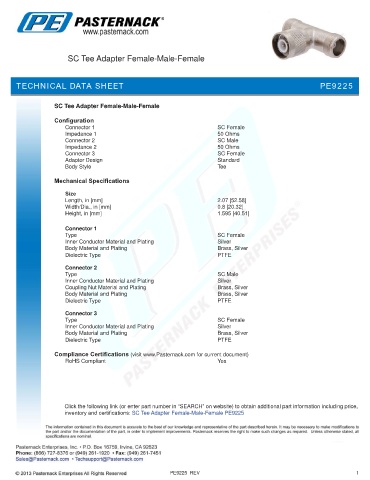

TECHNICAL DATA SHEET PE9225

SC Tee Adapter Female-Male-Female

Configuration
Connector 1 SC Female
Impedance 1 50 Ohms
Connector 2 SC Male
Impedance 2 50 Ohms
Connector 3 SC Female
Adapter Design Standard
Body Style Tee
Mechanical Specifications

Size
Length, in [mm] 2.07 [52.58]
Width/Dia., in [mm] 0.8 [20.32]
Height, in [mm] 1.595 [40.51]
.
Connector 1
Type SC Female
Inner Conductor Material and Plating Silver
Body Material and Plating Brass, Silver
Dielectric Type PTFE
Connector 2
Type SC Male
Inner Conductor Material and Plating Silver
Coupling Nut Material and Plating Brass, Silver
Body Material and Plating Brass, Silver
Dielectric Type PTFE

Connector 3
Type SC Female
Inner Conductor Material and Plating Silver
Body Material and Plating Brass, Silver
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SC Tee Adapter Female-Male-Female PE9225

PE9225 REV 1
