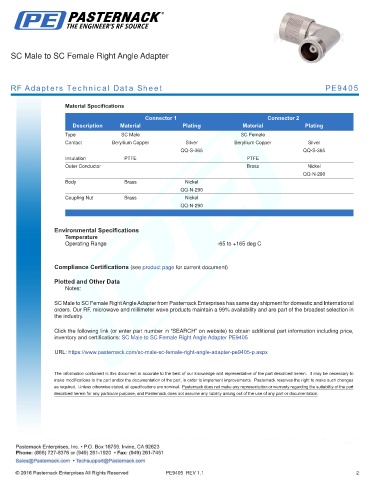

SC Male to SC Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9405

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SC Male SC Female
Contact Beryllium Copper Silver Beryllium Copper Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

SC Male to SC Female Right Angle Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SC Male to SC Female Right Angle Adapter PE9405

URL: https://www.pasternack.com/sc-male-sc-female-right-angle-adapter-pe9405-p.aspx

PE9405 REV 1.1 2
