SC Male to SC Female Adapter

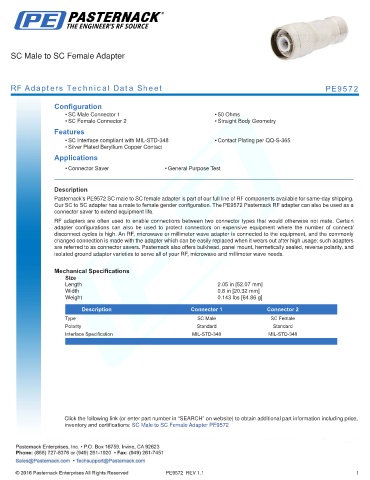

RF Adapters Technical Data Sheet PE9572

Configuration
• SC Male Connector 1 • 50 Ohms
• SC Female Connector 2 • Straight Body Geometry
Features
• SC Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
• Silver Plated Beryllium Copper Contact
Applications
• Connector Saver • General Purpose Test
.
Description
Pasternack’s PE9572 SC male to SC female adapter is part of our full line of RF components available for same-day shipping.
Our SC to SC adapter has a male to female gender configuration. The PE9572 Pasternack RF adapter can also be used as a
connector saver to extend equipment life.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 2.05 in [52.07 mm]
Width 0.8 in [20.32 mm]
Weight 0.143 lbs [64.86 g]
.
Description Connector 1 Connector 2
Type SC Male SC Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SC Male to SC Female Adapter PE9572

PE9572 REV 1.1 1
