SMA Male to SMA Female Radius Right Angle Adapter

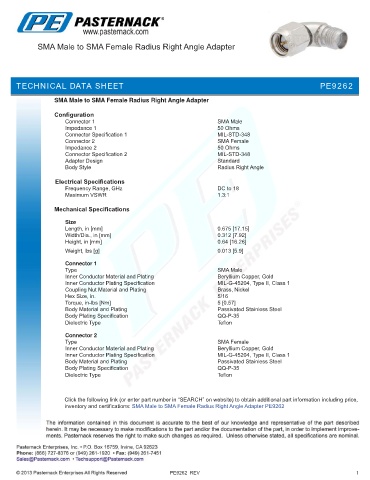

TECHNICAL DATA SHEET PE9262

SMA Male to SMA Female Radius Right Angle Adapter

Configuration
Connector 1 SMA Male
Impedance 1 50 Ohms
Connector Specification 1 MIL-STD-348
Connector 2 SMA Female
Impedance 2 50 Ohms
Connector Specification 2 MIL-STD-348
Adapter Design Standard
Body Style Radius Right Angle

Electrical Specifications
Frequency Range, GHz DC to 18
Maximum VSWR 1.3:1
Mechanical Specifications

Size
Length, in [mm] 0.675 [17.15]
Width/Dia., in [mm] 0.312 [7.92]
Height, in [mm] 0.64 [16.26]
.
Weight, lbs [g] 0.013 [5.9]

Connector 1
Type SMA Male
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204, Type II, Class 1
Coupling Nut Material and Plating Brass, Nickel
Hex Size, in. 5/16
Torque, in-lbs [Nm] 5 [0.57]
Body Material and Plating Passivated Stainless Steel
Body Plating Specification QQ-P-35
Dielectric Type Teflon
Connector 2
Type SMA Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204, Type II, Class 1
Body Material and Plating Passivated Stainless Steel
Body Plating Specification QQ-P-35
Dielectric Type Teflon

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Radius Right Angle Adapter PE9262

PE9262 REV 1
