Precision SMA Male to SMA Female Radius Right Angle Adapter

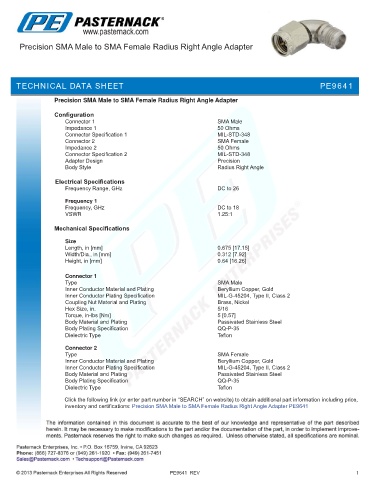

TECHNICAL DATA SHEET PE9641

Precision SMA Male to SMA Female Radius Right Angle Adapter

Configuration
Connector 1 SMA Male
Impedance 1 50 Ohms
Connector Specification 1 MIL-STD-348
Connector 2 SMA Female
Impedance 2 50 Ohms
Connector Specification 2 MIL-STD-348
Adapter Design Precision
Body Style Radius Right Angle

Electrical Specifications
Frequency Range, GHz DC to 26

Frequency 1
Frequency, GHz DC to 18
VSWR 1.25:1

Mechanical Specifications

Size
Length, in [mm] 0.675 [17.15]
Width/Dia., in [mm] 0.312 [7.92]
Height, in [mm] 0.64 [16.26]
.
Connector 1
Type SMA Male
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204, Type II, Class 2
Coupling Nut Material and Plating Brass, Nickel
Hex Size, in. 5/16
Torque, in-lbs [Nm] 5 [0.57]
Body Material and Plating Passivated Stainless Steel
Body Plating Specification QQ-P-35
Dielectric Type Teflon

Connector 2
Type SMA Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204, Type II, Class 2
Body Material and Plating Passivated Stainless Steel
Body Plating Specification QQ-P-35
Dielectric Type Teflon

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Male to SMA Female Radius Right Angle Adapter PE9641

PE9641 REV 1
