SMA Male to SMA Female Radius
Right Angle Adapter, Gold Plated

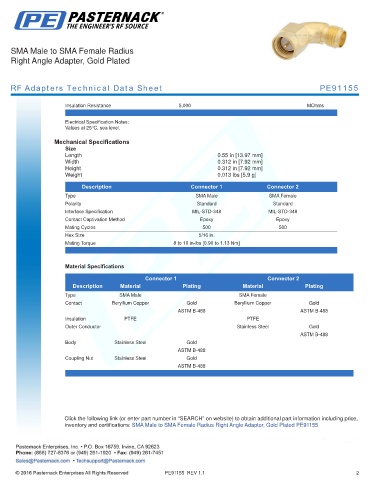

RF Adapters Technical Data Sheet PE91155

Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 0.55 in [13.97 mm]
Width 0.312 in [7.92 mm]
Height 0.312 in [7.92 mm]
Weight 0.013 lbs [5.9 g]
.
Description Connector 1 Connector 2
Type SMA Male SMA Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Contact Captivation Method Epoxy Epoxy
Mating Cycles 500 500
Hex Size 5/16 in.
Mating Torque 8 to 10 in-lbs [0.90 to 1.13 Nm]
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
ASTM B-488 ASTM B-488
Insulation PTFE PTFE
Outer Conductor Stainless Steel Gold
ASTM B-488
Body Stainless Steel Gold
ASTM B-488
Coupling Nut Stainless Steel Gold
ASTM B-488
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Radius Right Angle Adapter, Gold Plated PE91155

PE91155 REV 1.1 2
