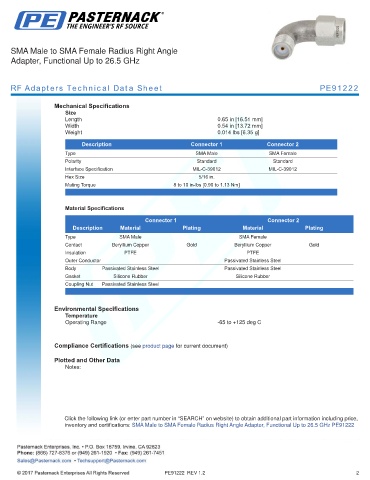

SMA Male to SMA Female Radius Right Angle
Adapter, Functional Up to 26.5 GHz

RF Adapters Technical Data Sheet PE91222

Mechanical Specifications
Size
Length 0.65 in [16.51 mm]
Width 0.54 in [13.72 mm]
Weight 0.014 lbs [6.35 g]
.
Description Connector 1 Connector 2
Type SMA Male SMA Female
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
Hex Size 5/16 in.
Mating Torque 8 to 10 in-lbs [0.90 to 1.13 Nm]
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel Passivated Stainless Steel
Gasket Silicone Rubber Silicone Rubber
Coupling Nut Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Radius Right Angle Adapter, Functional Up to 26.5 GHz PE91222

PE91222 REV 1.2 2
