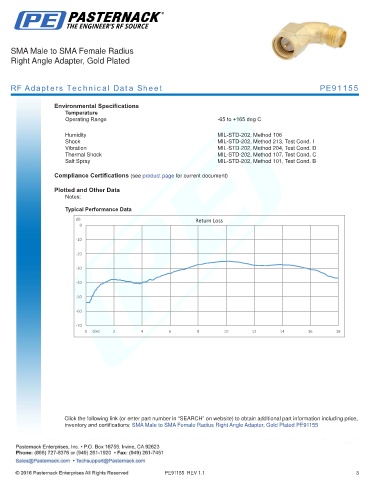

SMA Male to SMA Female Radius
Right Angle Adapter, Gold Plated
RF Adapters Technical Data Sheet PE91155
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Test Cond. I
Vibration MIL-STD-202, Method 204, Test Cond. D
Thermal Shock MIL-STD-202, Method 107, Test Cond. C
Salt Spray MIL-STD-202, Method 101, Test Cond. B
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
-70
0 GHz 2 4 6 8 10 12 14 16 18
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Radius Right Angle Adapter, Gold Plated PE91155
PE91155 REV 1.1 3
