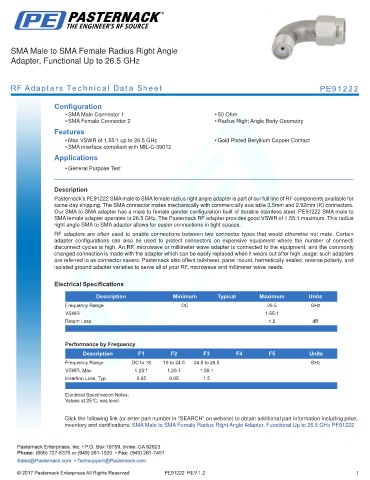

SMA Male to SMA Female Radius Right Angle
Adapter, Functional Up to 26.5 GHz

RF Adapters Technical Data Sheet PE91222

Configuration
• SMA Male Connector 1 • 50 Ohm
• SMA Female Connector 2 • Radius Right Angle Body Geometry
Features
• Max VSWR of 1.55:1 up to 26.5 GHz • Gold Plated Beryllium Copper Contact
• SMA interface compliant with MIL-C-39012
Applications
• General Purpose Test
.
Description
Pasternack’s PE91222 SMA male to SMA female radius right angle adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to SMA adapter has a male to female gender configuration built of durable stainless steel. PE91222 SMA male to
SMA female adapter operates to 26.5 GHz. The Pasternack RF adapter provides good VSWR of 1.55:1 maximum. This radius
right angle SMA to SMA adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 26.5 GHz
VSWR 1.55:1
Return Loss 1.5 dB
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 18 18 to 24.5 24.5 to 26.5 GHz
VSWR, Max 1.25:1 1.25:1 1.55:1
Insertion Loss, Typ 0.65 0.85 1.5
.
Electrical Specification Notes:
Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Radius Right Angle Adapter, Functional Up to 26.5 GHz PE91222

PE91222 REV 1.2 1
