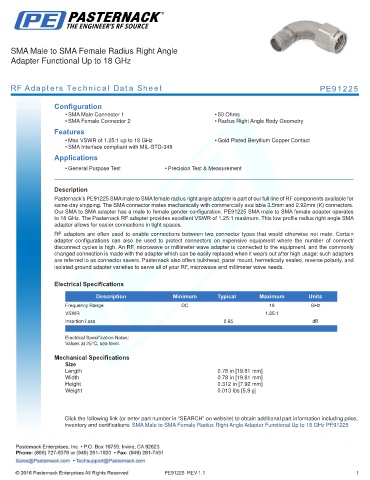

SMA Male to SMA Female Radius Right Angle
Adapter Functional Up to 18 GHz

RF Adapters Technical Data Sheet PE91225

Configuration
• SMA Male Connector 1 • 50 Ohms
• SMA Female Connector 2 • Radius Right Angle Body Geometry
Features
• Max VSWR of 1.25:1 up to 18 GHz • Gold Plated Beryllium Copper Contact
• SMA Interface compliant with MIL-STD-348
Applications
• General Purpose Test • Precision Test & Measurement
.
Description
Pasternack’s PE91225 SMA male to SMA female radius right angle adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to SMA adapter has a male to female gender configuration. PE91225 SMA male to SMA female adapter operates
to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum. This low profile radius right angle SMA
adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.25:1
Insertion Loss 0.65 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.78 in [19.81 mm]
Width 0.78 in [19.81 mm]
Height 0.312 in [7.92 mm]
Weight 0.013 lbs [5.9 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Radius Right Angle Adapter Functional Up to 18 GHz PE91225

PE91225 REV 1.1 1
