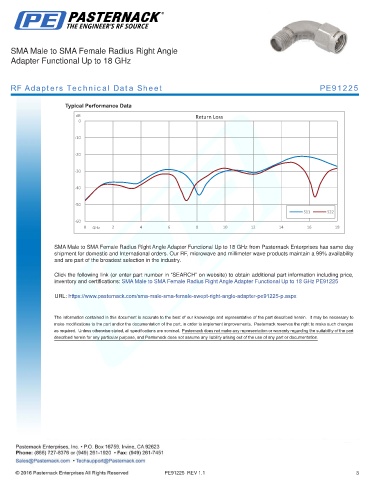

Page 1898 - RF Adapter Datasheets

SMA Male to SMA Female Radius Right Angle
Adapter Functional Up to 18 GHz

RF Adapters Technical Data Sheet PE91225

Typical Performance Data
dB Return Loss
0

-10

-20

-30

-40

-50
S11 S22
-60
0 GHz 2 4 6 8 10 12 14 16 18

SMA Male to SMA Female Radius Right Angle Adapter Functional Up to 18 GHz from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Radius Right Angle Adapter Functional Up to 18 GHz PE91225

URL: https://www.pasternack.com/sma-male-sma-female-swept-right-angle-adapter-pe91225-p.aspx

PE91225 REV 1.1 3
