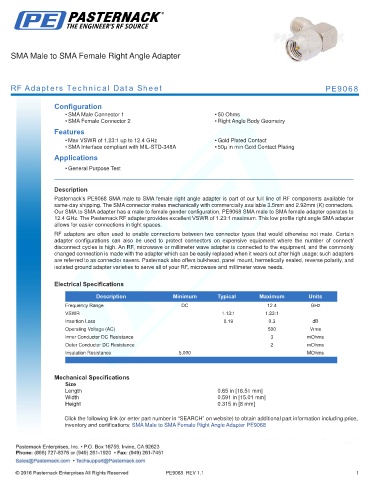

SMA Male to SMA Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9068

Configuration
• SMA Male Connector 1 • 50 Ohms
• SMA Female Connector 2 • Right Angle Body Geometry
Features
• Max VSWR of 1.23:1 up to 12.4 GHz • Gold Plated Contact
• SMA Interface compliant with MIL-STD-348A • 50µ in min Gold Contact Plating
Applications
• General Purpose Test
.
Description
Pasternack’s PE9068 SMA male to SMA female right angle adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to SMA adapter has a male to female gender configuration. PE9068 SMA male to SMA female adapter operates to
12.4 GHz. The Pasternack RF adapter provides excellent VSWR of 1.23:1 maximum. This low profile right angle SMA adapter
allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
VSWR 1.13:1 1.23:1
Insertion Loss 0.19 0.3 dB
Operating Voltage (AC) 500 Vrms
Inner Conductor DC Resistance 3 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
. .

Mechanical Specifications
Size
Length 0.65 in [16.51 mm]
Width 0.591 in [15.01 mm]
Height 0.315 in [8 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Right Angle Adapter PE9068

PE9068 REV 1.1 1
