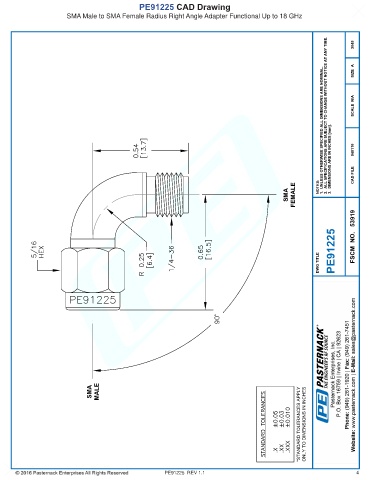

PE91225 CAD Drawing
SMA Male to SMA Female Radius Right Angle Adapter Functional Up to 18 GHz
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3045
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 040116 CAD FILE
SMA FEMALE NOTES:
PE91225 FSCM NO. 53919
DWG TITLE
SMA MALE
*STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
PE91225 REV 1.1 4
