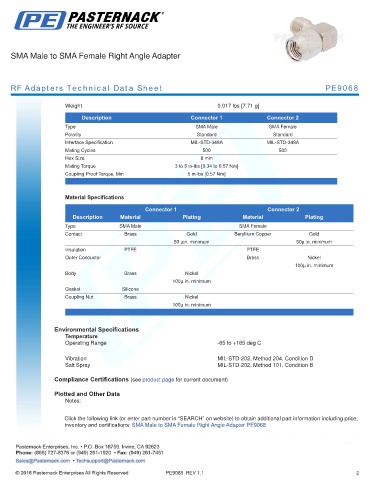

SMA Male to SMA Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9068

Weight 0.017 lbs [7.71 g]
.
Description Connector 1 Connector 2
Type SMA Male SMA Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Mating Cycles 500 500
Hex Size 8 mm
Mating Torque 3 to 5 in-lbs [0.34 to 0.57 Nm]
Coupling Proof Torque, Min 5 in-lbs [0.57 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male SMA Female
Contact Brass Gold Beryllium Copper Gold
50 µin. minimum 50µ in. minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100µ in. minimum
Body Brass Nickel
100µ in. minimum
Gasket Silicone
Coupling Nut Brass Nickel
100µ in. minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Vibration MIL-STD-202, Method 204, Condition D
Salt Spray MIL-STD-202, Method 101, Condition B

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Right Angle Adapter PE9068

PE9068 REV 1.1 2
