SMA Male to SMA Female Right Angle Adapter
RF Adapters Technical Data Sheet PE9068

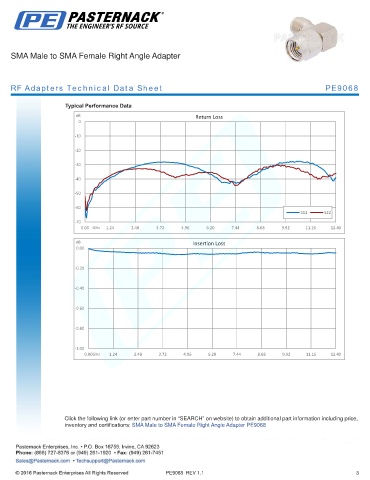

Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
S11 S22
-70
0.00 GHz 1.24 2.48 3.72 4.96 6.20 7.44 8.68 9.92 11.16 12.40
dB Insertion Loss
0.00
-0.20
-0.40
-0.60
-0.80
-1.00
0.00GHz 1.24 2.48 3.72 4.96 6.20 7.44 8.68 9.92 11.16 12.40
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SMA Female Right Angle Adapter PE9068
